The Common-Controls Tag Library

<ctrl:colorpicker>

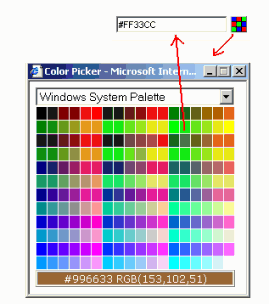

Generates an input field for a color value. The color value can be selected from a color palette.
../images/images/colorpicker_ctrl.gif

Body content: JSP
Tag class: ColorPickerTag


[ Syntax ]

Standard Syntax
<ctrl:colorpicker
[ buttonAlt = "String" ]
[ buttonTooltip = "String" ]
[ converter = "Java class or Converter Id" ]
[ disabled = "boolean" ]
[ id = "String" ]
[ maxlength = "Integer" ]
[ name = "String" ]
[ onblur = "String" ]
[ onchange = "String" ]
[ onclick = "String" ]
[ oncontextmenu = "String" ]
[ ondblclick = "String" ]
[ onfocus = "String" ]
[ onkeydown = "String" ]
[ onkeypress = "String" ]
[ onkeyup = "String" ]
[ onmousedown = "String" ]
[ onmousemove = "String" ]
[ onmouseout = "String" ]
[ onmouseover = "String" ]
[ onmouseup = "String" ]
[ palette = "String" ]
[ property = "String" ]
[ scope = "{any | page | request | session | application}" ]
[ size = "Integer" ]
[ style = "String" ]
[ styleId = "String" ]
[ tabindex = "Integer" ]
[ tooltip = "String" ]
[ value = "String" ]
>
...Body Content...

</ctrl:colorpicker>


[ Attributes ]

AttributeTypeDescriptionReq.RTExp
buttonAltString Specifies the alternative text that is output when the display of images in the browser has been disabled.
buttonTooltipString A short descriptive text that is displayed when the user moves the mouse over the button.
converterJava class or Converter Id Specifies the Converter which should be used to convert the data for the control. If the attribute is not set the framework will use a default converter which matches the controls data type (ConverterRegistry.lookup()).

A converter can be specified in different ways:

  • The public Converter Id is set.
  • Or a full qualified Java class name for the converter is specified. The class must implement the interface Converter

Annotation: The class must to implement the interface Converter!


disabledboolean This attribute can be used to disable the control element. It then does not accept any user inputs and does not generate any control element events.
idString The name of a page scope JSP bean that will contain the current element. Using the given Id, the variable can be accessed in scripting expressions in the tag Body. The id mus be a string lteral because the JSP compiler generates a variable withthis name at compile time

Annotation: A valid Java identifier must be given.


maxlengthInteger Specifies the maximum number of characters for the data input.
nameString Specifies the name of the Java-Bean. The Java-Bean must be stored in the given scope.

When the tag is surrounded by a Struts <html:form> tag, no Bean Name need be specified. In this case, the Java-Bean is drawn via a property of the Struts Form Bean.

Annotation: A valid Java identifier must be given.


onblurString Fires when the object loses the input focus.

Annotation: JavaScript Code


onchangeString Fires when the contents of the object or selection have changed.

Annotation: JavaScript Code


onclickString Fires when the user clicks the left mouse button on the object.

Annotation: JavaScript Code


oncontextmenuString Fires when the user clicks the right mouse button in the client area, opening the context menu.

Annotation: JavaScript Code


ondblclickString Fires when the user double-clicks the object.

Annotation: JavaScript Code


onfocusString Fires when the object receives focus.

Annotation: JavaScript Code


onkeydownString Fires when the user presses a key.

Annotation: JavaScript Code


onkeypressString Fires when the user presses an alphanumeric key.

Annotation: JavaScript Code


onkeyupString Fires when the user releases a key.

Annotation: JavaScript Code


onmousedownString Fires when the user clicks the object with either mouse button.

Annotation: JavaScript Code


onmousemoveString Fires when the user moves the mouse over the object.

Annotation: JavaScript Code


onmouseoutString Fires when the user moves the mouse pointer outside the boundaries of the object.

Annotation: JavaScript Code


onmouseoverString Fires when the user moves the mouse pointer into the object.

Annotation: JavaScript Code


onmouseupString Fires when the user releases a mouse button while the mouse is over the object.

Annotation: JavaScript Code


paletteString Opens the popup window with the selected palette:
  • 0 = Web Safe Palette (default)
  • 1 = Windows System Palette
  • 2 = Grey Scale Palette

propertyString Specifies the name of the property using which the Java-Bean is to be accessed. This is generally only necessary when the Java-Bean is associated with a Struts Form Bean.

Annotation: A valid Java identifier must be given.


scopeHTTPScope This attribute shows the Scope in which the Java-Bean with the actual display data can be found.
  • any = The Bean is searched for in ever Scope.
  • page = The Bean exists as a local variable in the JSP Page.
  • request = The Bean is in the HTTP-Request.
  • session = The Bean is in the HTTP-Session.
  • application = The Bean is in the Servletkontext.

sizeInteger Specifies the number of visible characters.
styleString An HTML-style can be directly specified with this attribute.

Annotation: See HTML documentation for the attribute style.


styleIdString The HTML-id attribute of the element can be specified with this attribute.

Annotation: See HTML documentation for the Attribute id.


tabindexInteger Tabulator Index for this element.
tooltipString A short descriptive text that is displayed when the user moves the mouse over the element.

The character string is HTML-encoded before outputting.


valueString This attribute sets the initial displayed value of the field if it displays a textual or numerical value.

Annotation: See HTML documentation for the attribute value.



[ Example ]

Colorpicker


<%@ taglib uri="http://www.common-controls.com/cc/tags-ctrl"    prefix="ctrl" %>

<ctrl:colorpicker name="mybean" property="color" maxlength="10" size="8" styleId="color" palette="1"/>
